1590 Litre Type AB Air Gap Tank
1590 Litre Type AB Air Gap Tank
1590 litre break tank

Type AB Air Gap Break Tank – 1590 Litres – Cat 5 Water Storage Tanks

£1,339.00 Exc VAT

GRP One Piece Insulated Cold Water Storage Tank, Complete with Bolted Lid and Access Hatch.

Manufactured to BS EN 13280, made from WRAS Approved Materials

Insulation Encapsulated into Tank Wall

£

Categories: , , , Tags: , , , ,

Description

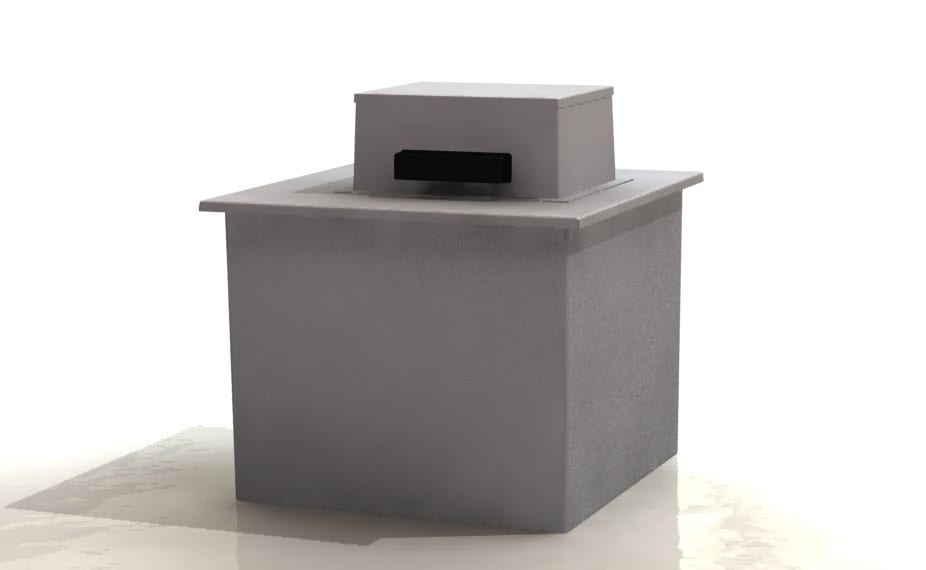

1590 Litres Nominal Capacity GRP One Piece Insulated Type AB Air Gap Break Tank

Type AB Air gap Break Tank Manufactured to BS EN 13280, made from WRAS Approved Materials (also to Byelaw 30)

Internal Dimensions (L x W x H): 1220 x 1220 x 1067mm

External Dimensions (L x W x H): 1390 x 1390 x 1167-1427mm

Fitted with Screened Spill Over weirs to make the Type AB  Air Gap, therefore making the Tank Category 5 Compliant.

Made from Glass Reinforced Plastic with a Gelcoat internal surface to prevent bacterial growth and importantly helps to keep the water as clean and fresh as possible.

The tank has Insulation encapsulated into the tank walls and Lid, as a result the external finish is cleaner.
Supplied with a Flange around the top of the tank  with a Lid Sealer running around the top In addition to An Insulated Bolted Lid ensuring the prevention of light into the tank and moreover the ingress of debris and Insects.
Tank is WRAS Approved,
Which above all other details the most important part for any drinking water tank.
Wras Approval ensures the tank is suitable for use as a potable vessel.

Litres are Nominal Capacity (to the Brim of the Tank)

Tank Requires a Flat Fully Supported Base for the tank to sit on, this base should be as flat as possible as to not distort the tank once positioned on the base.

There is a slight Taper on the Height of the tank of approximately 20mm, therefore the top of the tank is 20mm wider than at the base.

There is a 25mm radius at the edge of each wall of the tank and also onto base.

A Usual Lead time for the tank is shown on this product, please check with us as this lead time can increase at busy times.

For more size options available on our standard tank sizes please Click Here

Additional information

Weight 104 kg
Insulation:

25mm Thick Insulated Tank Walls
50mm Thick Insulated Tank Walls Also Available
Dimensions:

Internal (LxWxH) : 1220mm x 1220mm x 1067mm
External (LxWxH) : 1390mm x 1390mm x 1167mm
Lead Time:

15-25 Days
Material:

GRP – DT CLASS 1
